Wio Terminal

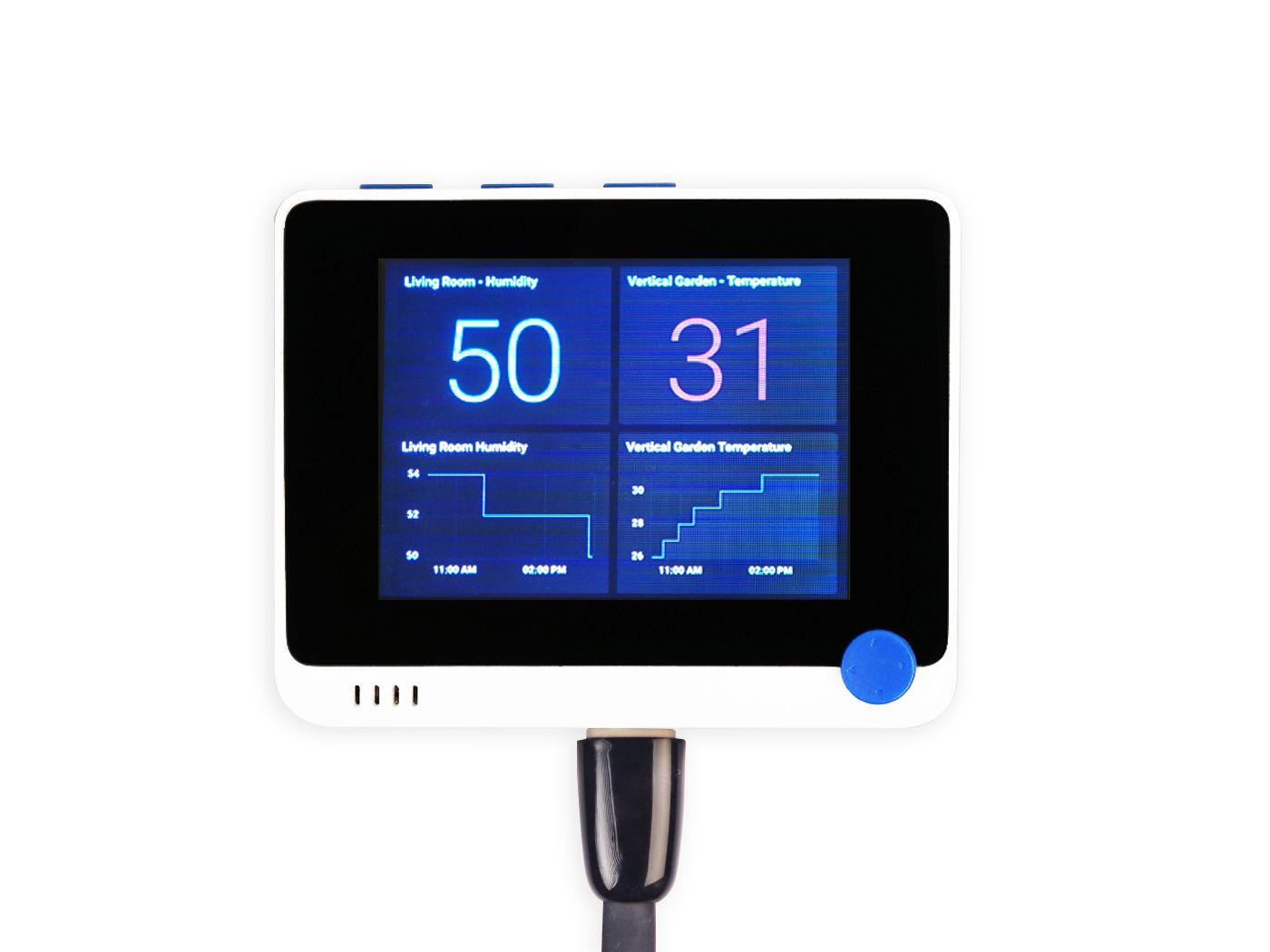

The Wio (Wireless Input and Output) Terminal is a complete system equipped with Screen + Development Board + Input/Output Interface + Enclosure

$38.00

The Wio (Wireless Input and Output) Terminal is a complete system equipped with Screen + Development Board + Input/Output Interface + Enclosure, with support for Arduino, CircuitPython, Micropython, ArduPy, AT Firmware, Visual Studio Code.

With Wio Terminal, you can:

  • Sense and tag the Real-World data with over 300 Groves created by Seeed
  • Easily build your TinyML applications with Edge Impulse
  • Use 100% open-source Hardware in a pythonic way
  • Build your program interpreter starting from 90% with an LCD screen and compact enclosure

    Compatible with Arduino and Micropython, Wio Terminal is an ATSAMD51-based microcontroller with wireless connectivity powered by Realtek RTL8720DN. Currently, wireless connectivity is only supported by Arduino. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects.

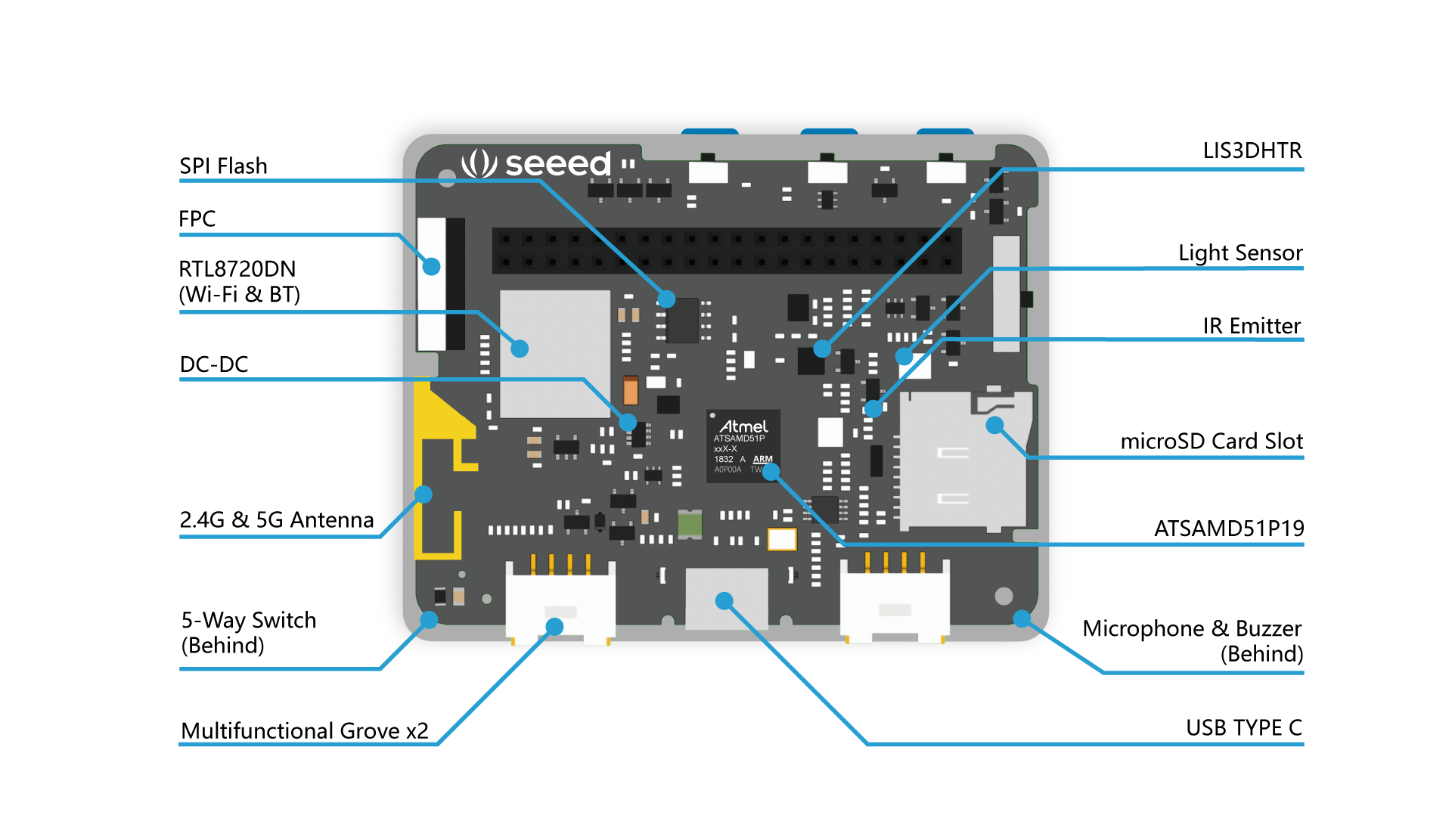

    The Wio Terminal itself is equipped with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm). On top of that, it also has two multifunctional Grove ports for Grove Ecosystem and Raspberry pi 40-pin compatible GPIO for more add-ons.

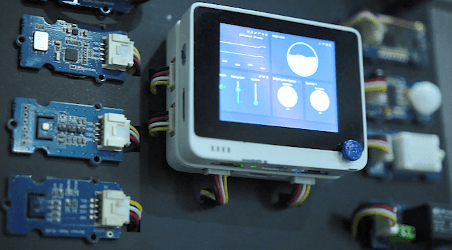

    • Wio Terminal + Grove = IoT System
    • Wio Terminal + Raspberry Pi = Edge Computing System
    • Wio Terminal + Customized add-ons = Handheld devices or endless possibilities!

    Key Features

    • Powerful MCU: Microchip ATSAMD51P19 with ARM Cortex-M4F core running at 120MHz
    • Reliable Wireless Connectivity: Equipped with Realtek RTL8720DN, dual-band 2.4GHz / 5GHz Wi-Fi (supported only by Arduino)
    • Highly Integrated Design: 2.4” LCD Screen, IMU and more practical add-ons housed in a compact enclosure with built-in magnets & mounting holes
    • Raspberry Pi 40-pin Compatible GPIO
    • Compatible with over 300 plug&play Grove modules to explore with IoT
    • USB OTG Support
    • Support Arduino, CircuitPython, Micropython, ArduPy, AT Firmware, Visual Studio Code
    • Perfect device for experimenting and prototyping TinyML applications.
    • TELEC certificated
    Technical Specifications
      Main Chip
          Manufacturer Part Number - ATSAMD51P19
            Core Processor - ARM® Cortex®-M4F
              Maximum Speed - 200MHz
                External Flash - 4MBytes
                  Operating Temperature -40°C ~ 85°C (TA)

                    LCD Screen
                      Resolution - 320x240
                        Display Size - 2.4inch
                          Drive IC - ILI9341
                      Wireless Connectivity
                          Manufacturer Part Number - RTL8720DN
                            KM4 CPU - ARM® Cortex®-M4F @ 200MHz
                              KM0 CPU - ARM® Cortex®-M0
                                Wi-Fi - 802.11 a/b/g/n 1x1, 2.4GHz & 5GHz
                                  Bluetooth Support - BLE5.0
                                Built-in Modules
                                  Accelerometer - LIS3DHTR
                                    Microphone - 1.0V-10V -42dB
                                      Speaker - ≥78dB @10cm 4000Hz
                                        Light Sensor - 400-1050nm
                                          Infrared Emitter - 940nm
                                          Interface

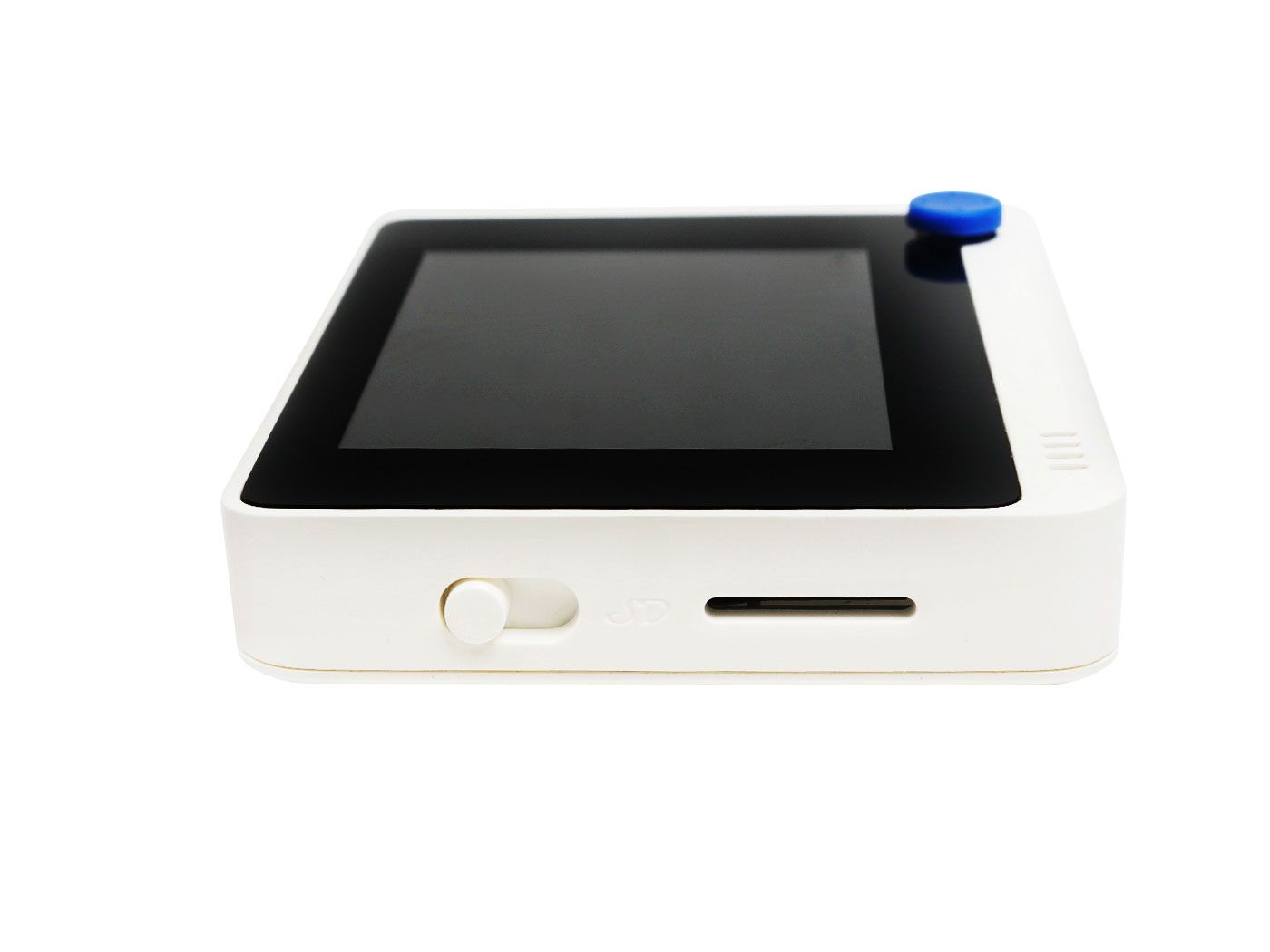

                                            MicroSD Card Slot - Maximum 16GB

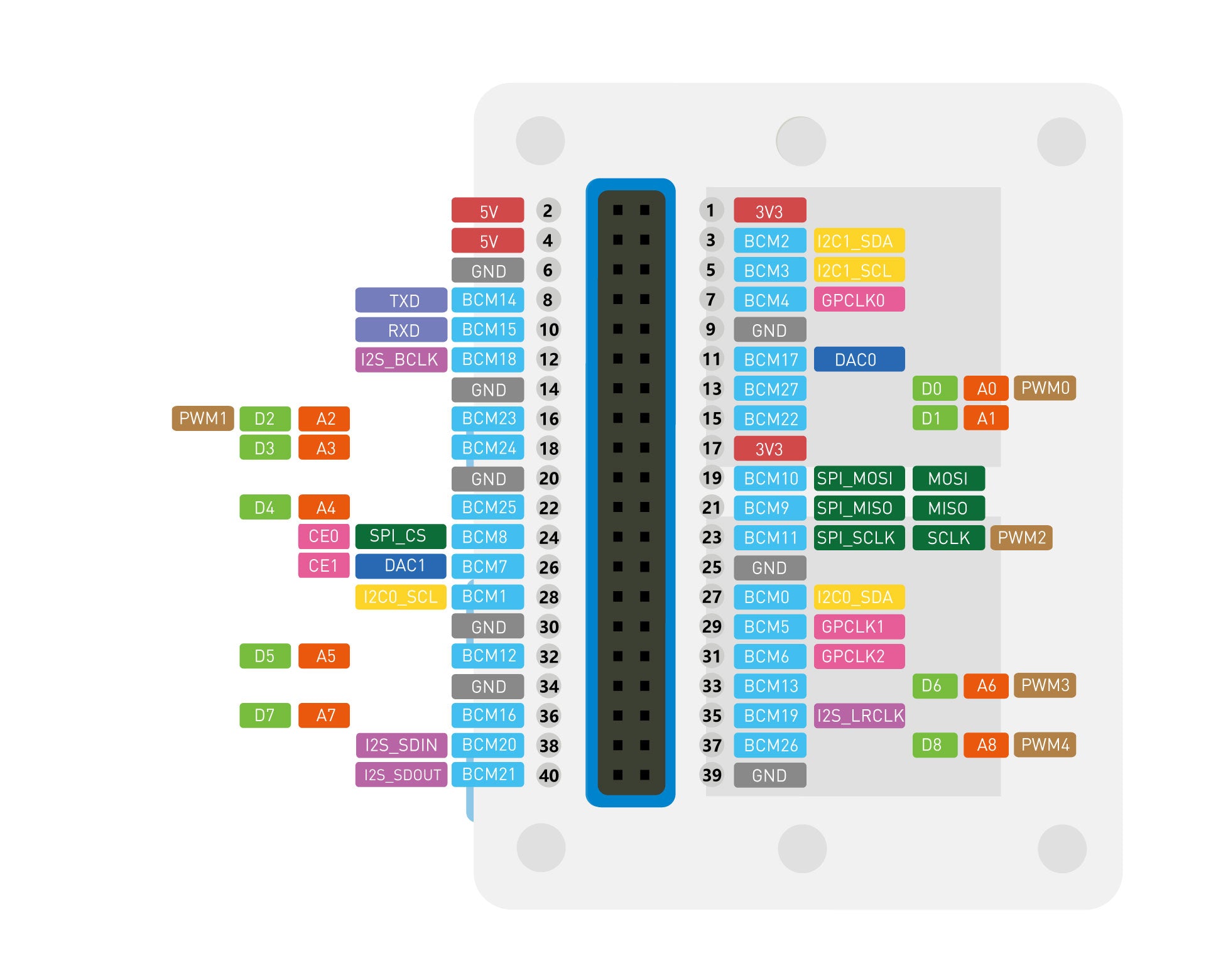

                                            GPIO - 40-PIN (Raspberry Pi Compatible)

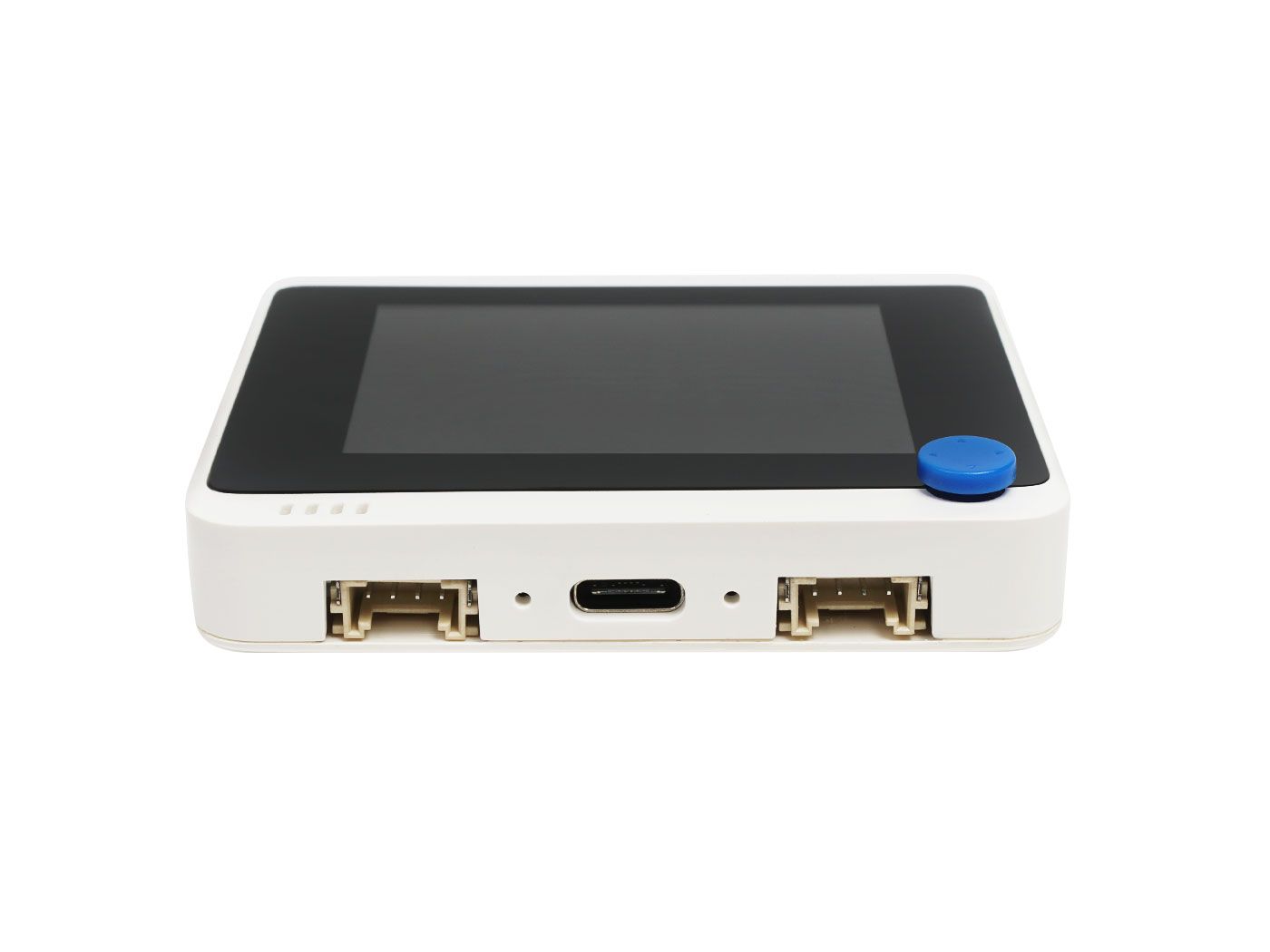

                                            Grove - 2 (Multifunction)
                                            FPC - 20-Pins
                                            USB Type-C - Power & USB-OTG
                                          Operation Interface
                                            5-Way Switch
                                            Power/Reset Switch
                                            User-defined button *3
                                          Enclosure Dimension 72mm*57mm*12mm
                                          Materials ABS+PC

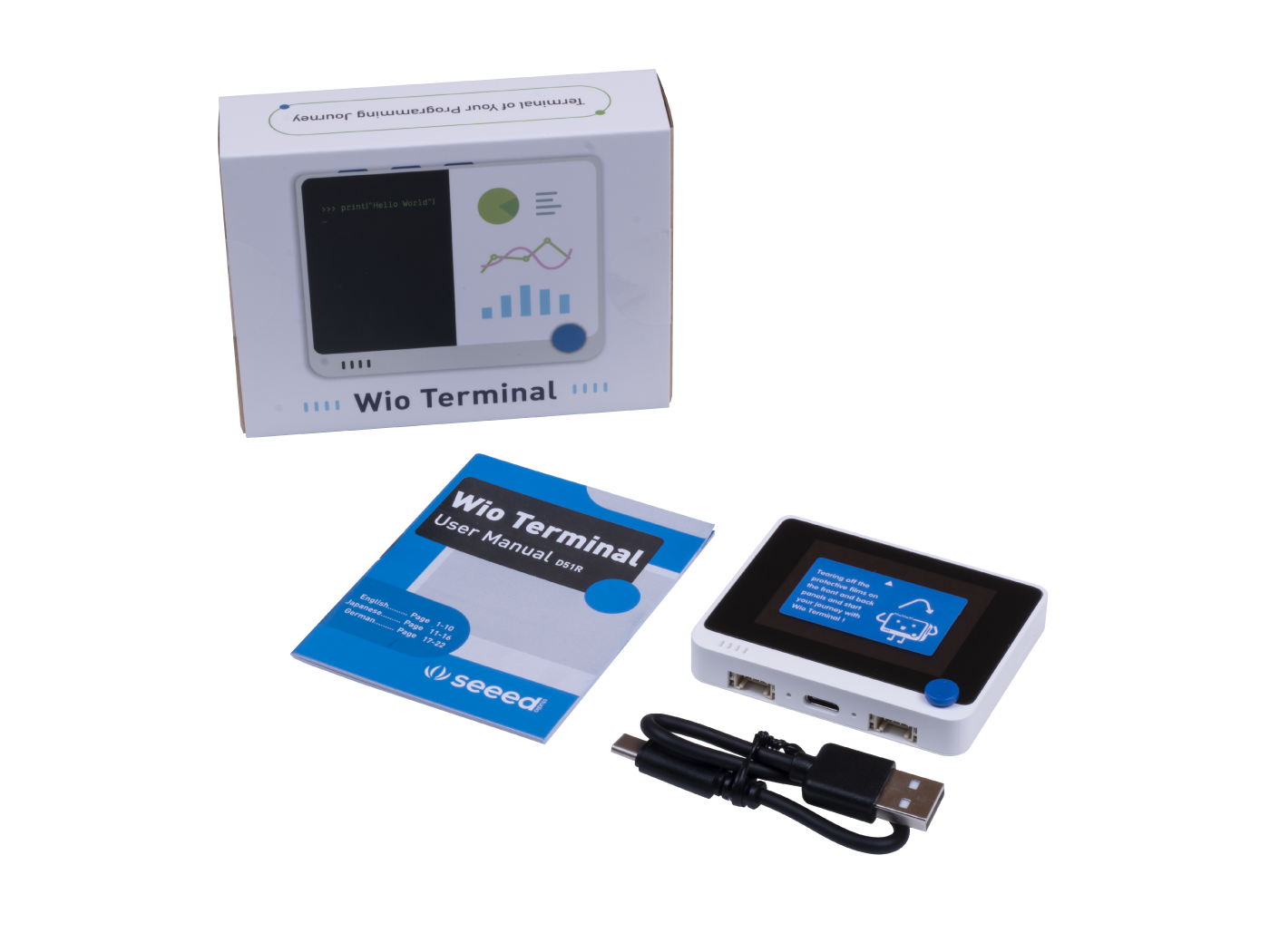

                                          Part List
                                            Wio Terminal
                                            USB Type-C Short Cable
                                            User Manual
