  • In stock, ready to ship
  • Backordered, shipping soon
$39.00
/
Shipping calculated at checkout.

Suggested Add-ons

The Petoi AI vision module can track the human body, human and animal faces, postures, gestures, 80 objects classifier, etc.

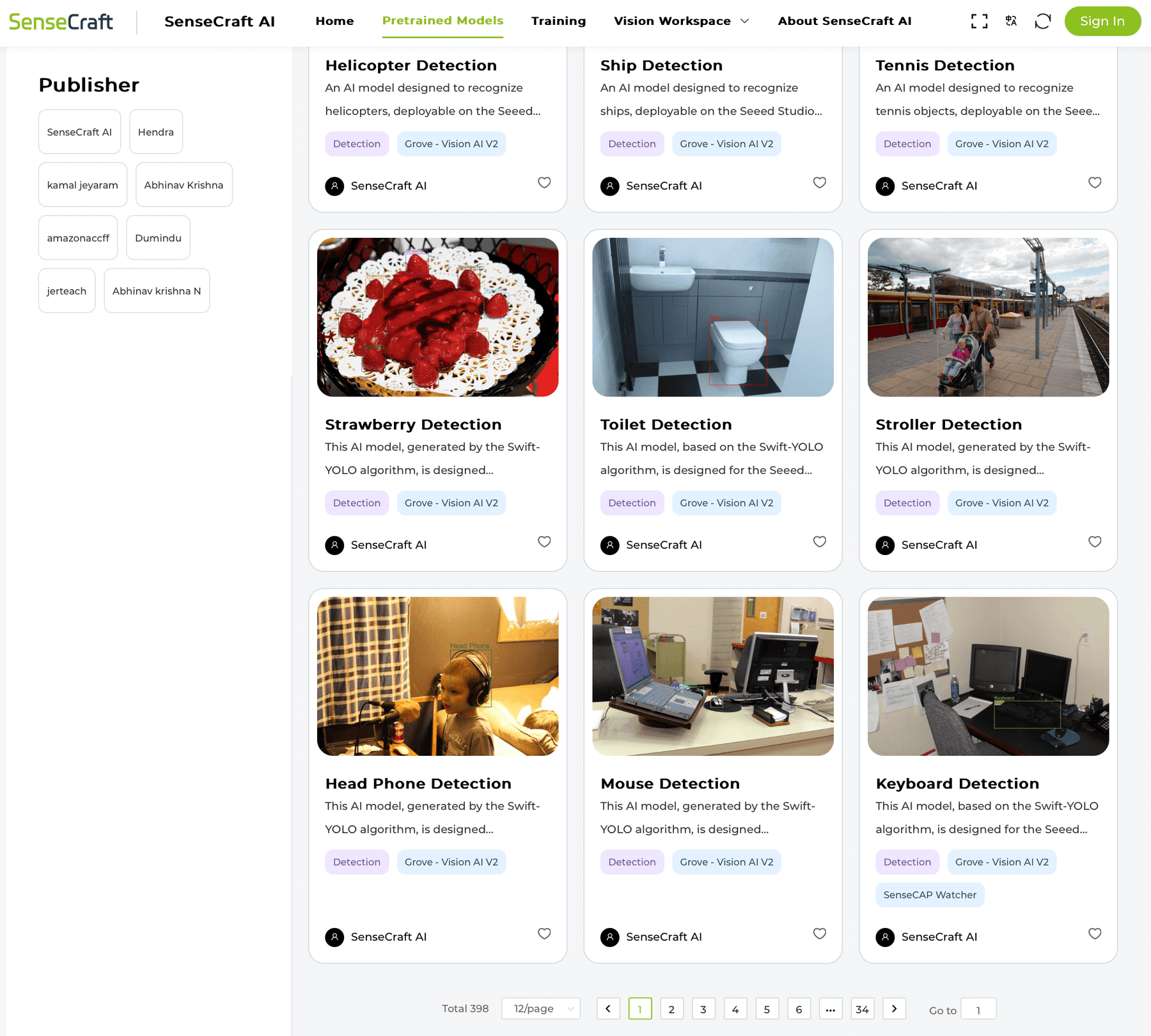

You can easily deploy off-the-shelf or your custom AI models from SenseCraft AI, including Mobilenet V1, V2, Efficientnet-lite, Yolo v5 & v8. TensorFlow and PyTorch frameworks are supported. Allow WiFi Image Transmission (module as AP).

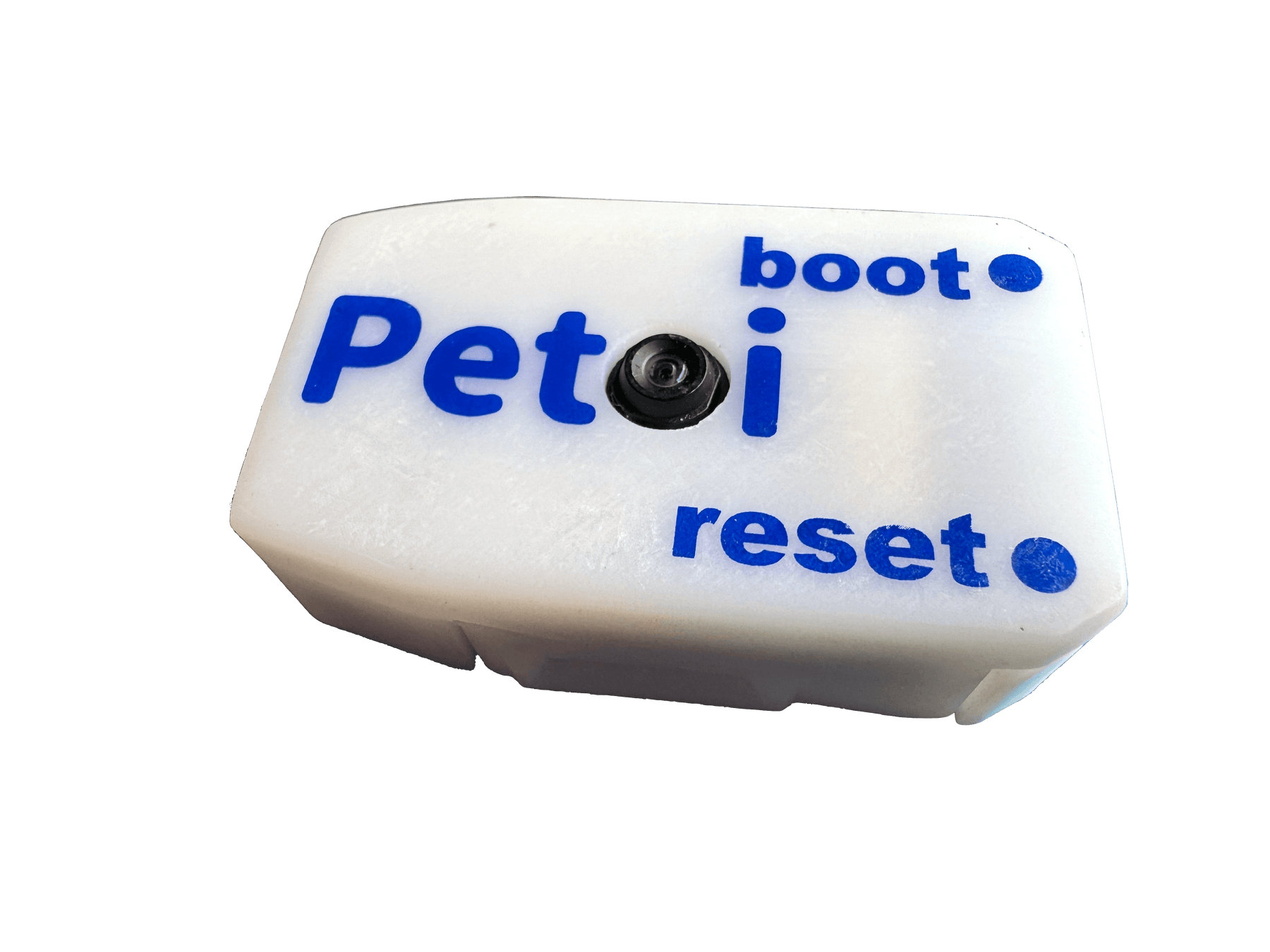

The module comes with a 120-degree wide-angle lens that is non-aberration and a 3D-printed case. You can put it into Bittle's mouth or clip it on the robot arm.

    Specifications

    Detected Objects Human body, Huan and animal faces, postures, gestures, 80 objects classifier, etc
    Functions Easily deploy off-the-shelf or your custom AI models from SenseCraft AI, including Mobilenet V1, V2, Efficientnet-lite, Yolo v5 & v8. TensorFlow and PyTorch frameworks are supported. Allow WiFi Image Transmission (module as AP).
    Extensible Can upload customized models
    Dimension 47 x 31 x 15 (with case)
    Algorithm YOLO V5 and V8

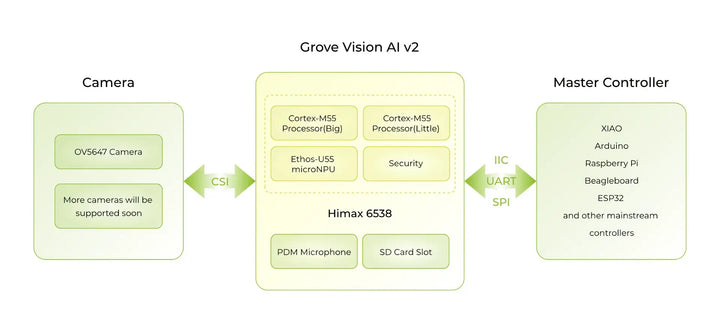

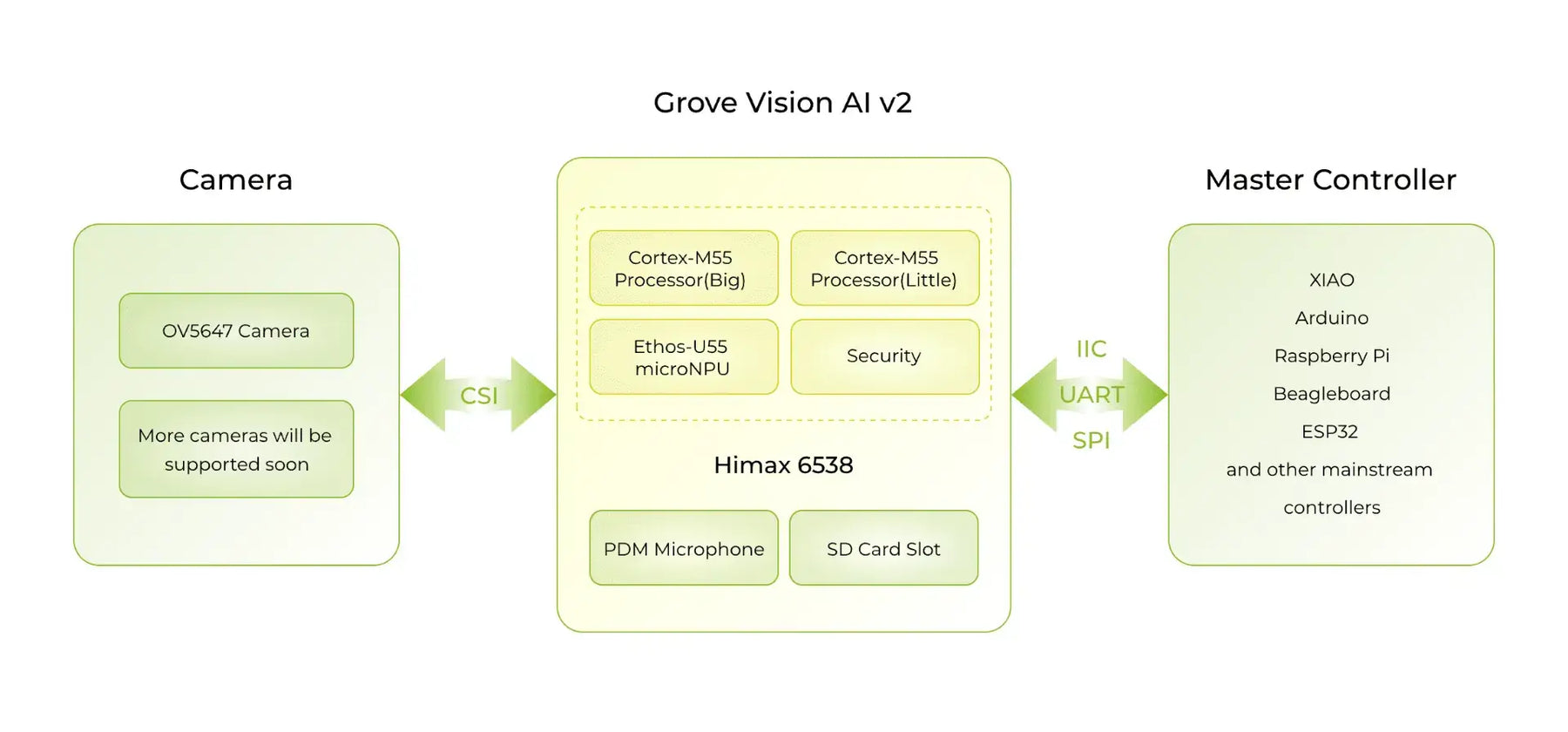

    Processor WiseEye2 HX6538 processor with a dual-core Arm Cortex-M55 and integrated Arm Ethos-U55 neural network unit.
    Camera Pixels 5MP

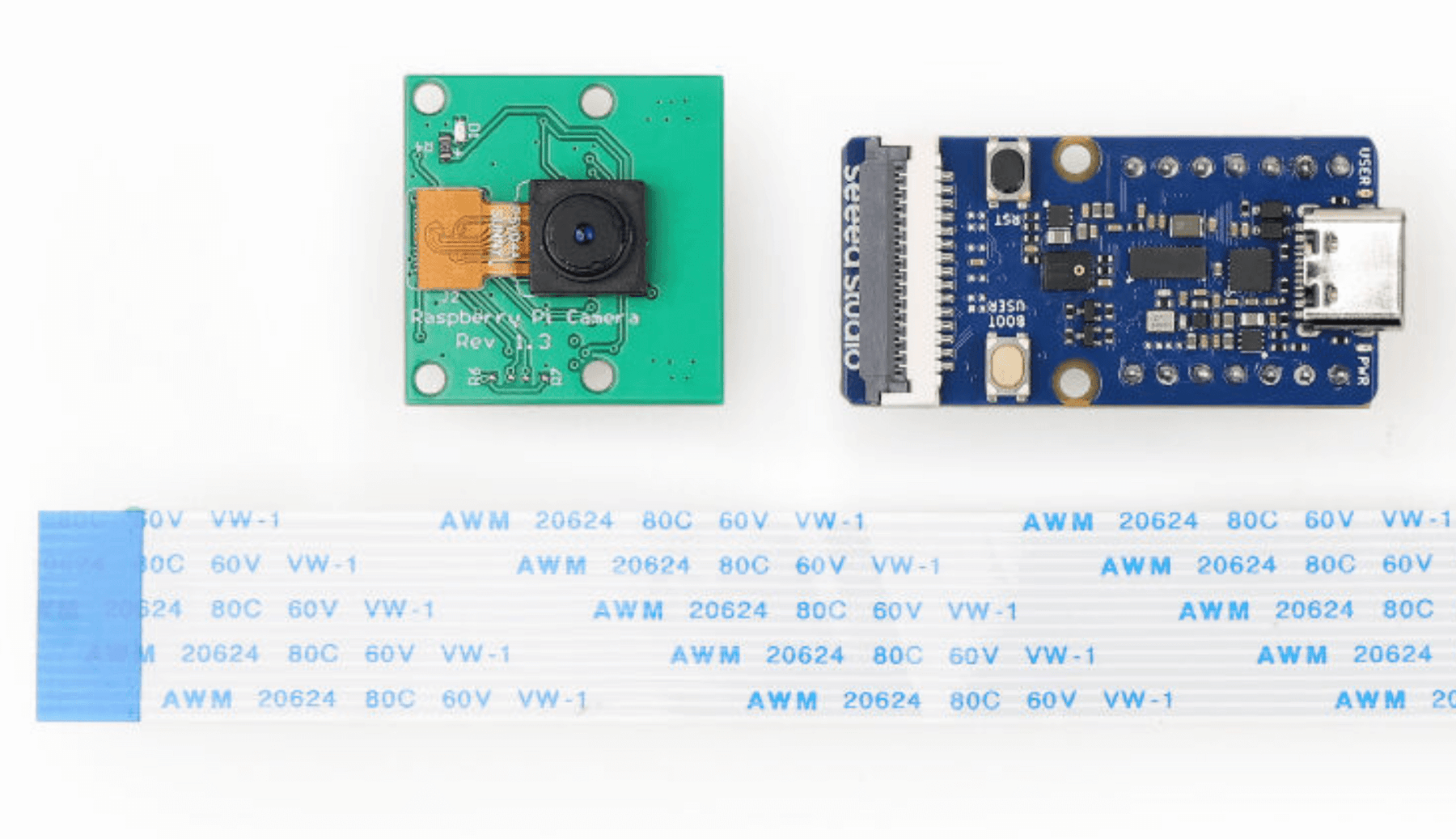

    Camera FOV (Diagonal line) 120° Raspberry Pi OV5647 Camera Module
    - wide-angle without distortion
    Resolution 240x240 or 480x480
    Frame rate 30fps
    SD card slot Yes
    Microphone Yes
    Ports Grove, Type-C, Seeed Xiao socket
    Communication modes I2C, WIFI, image transmission
    Interface Browser-based SenseCraft AI, Arduino IDE
    Open source All codes, design files, and schematics available for modification and use
    Case 3D printed attachable case
