All batteries must be shipped by a ground shipping method.

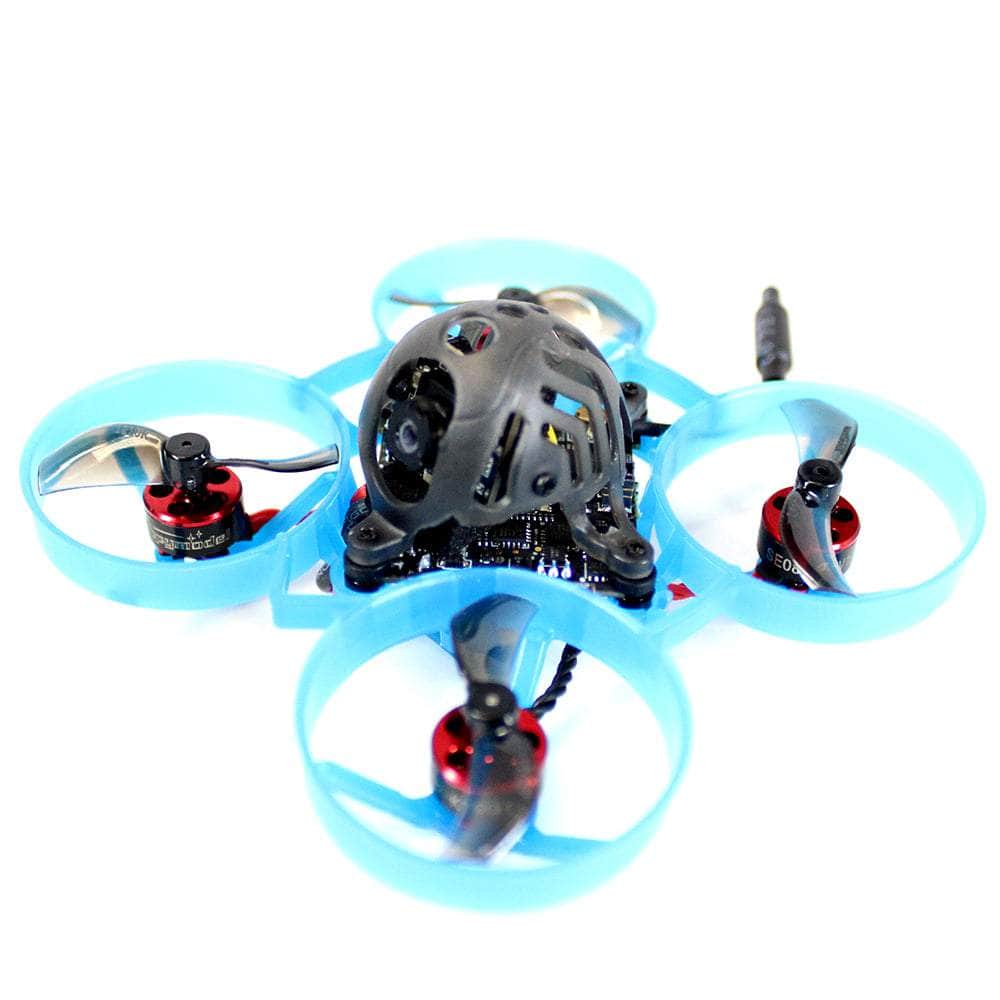

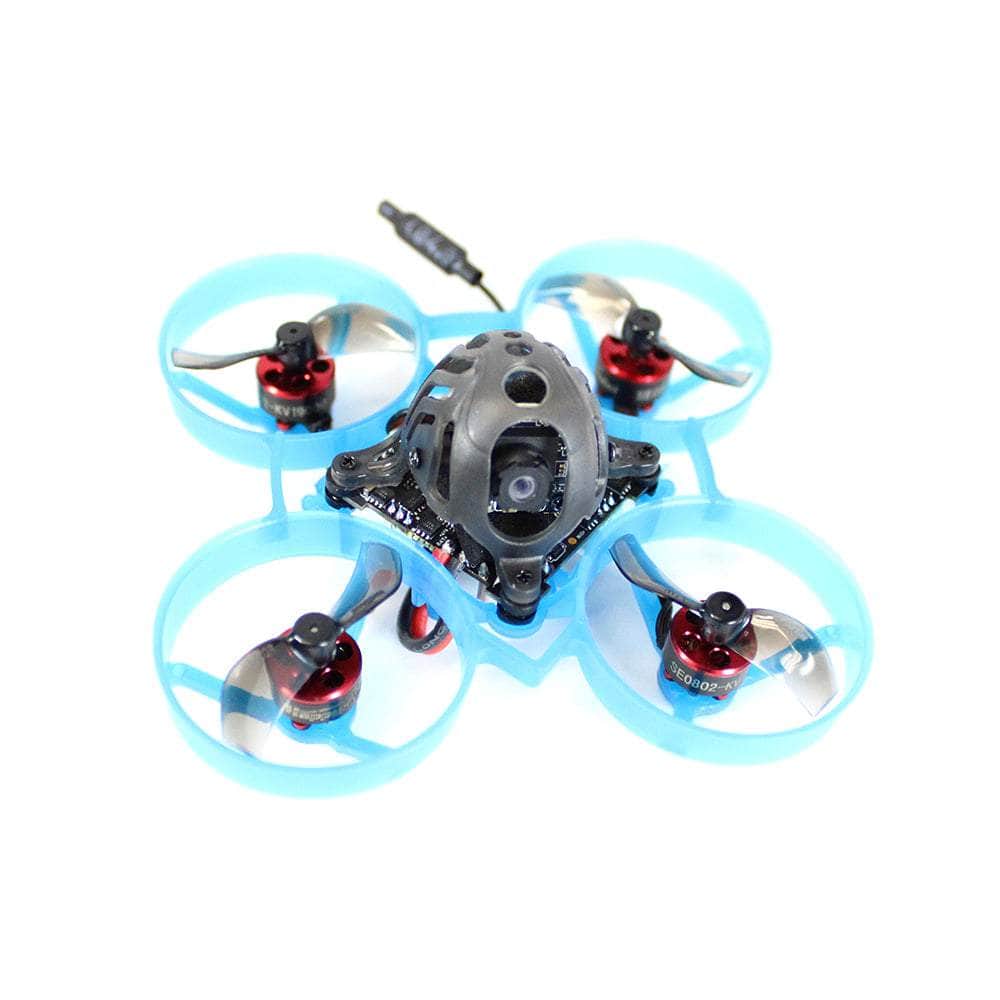

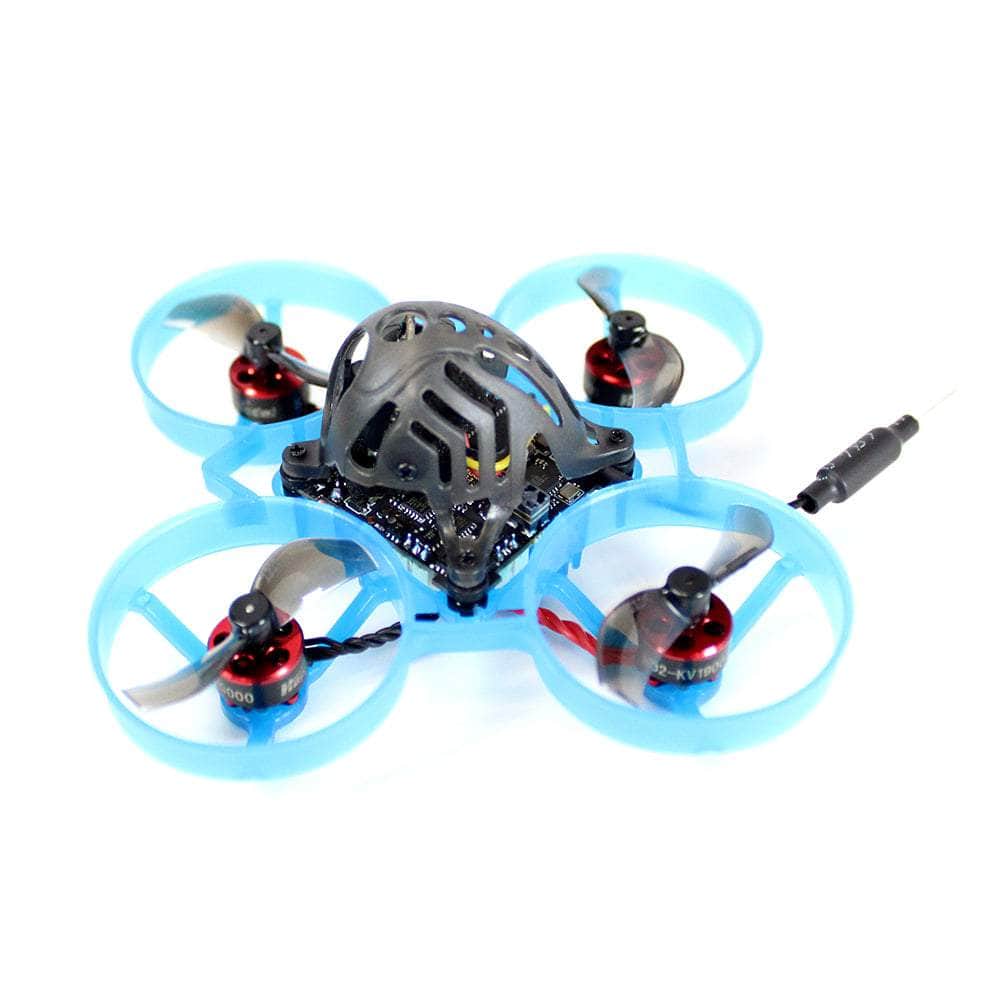

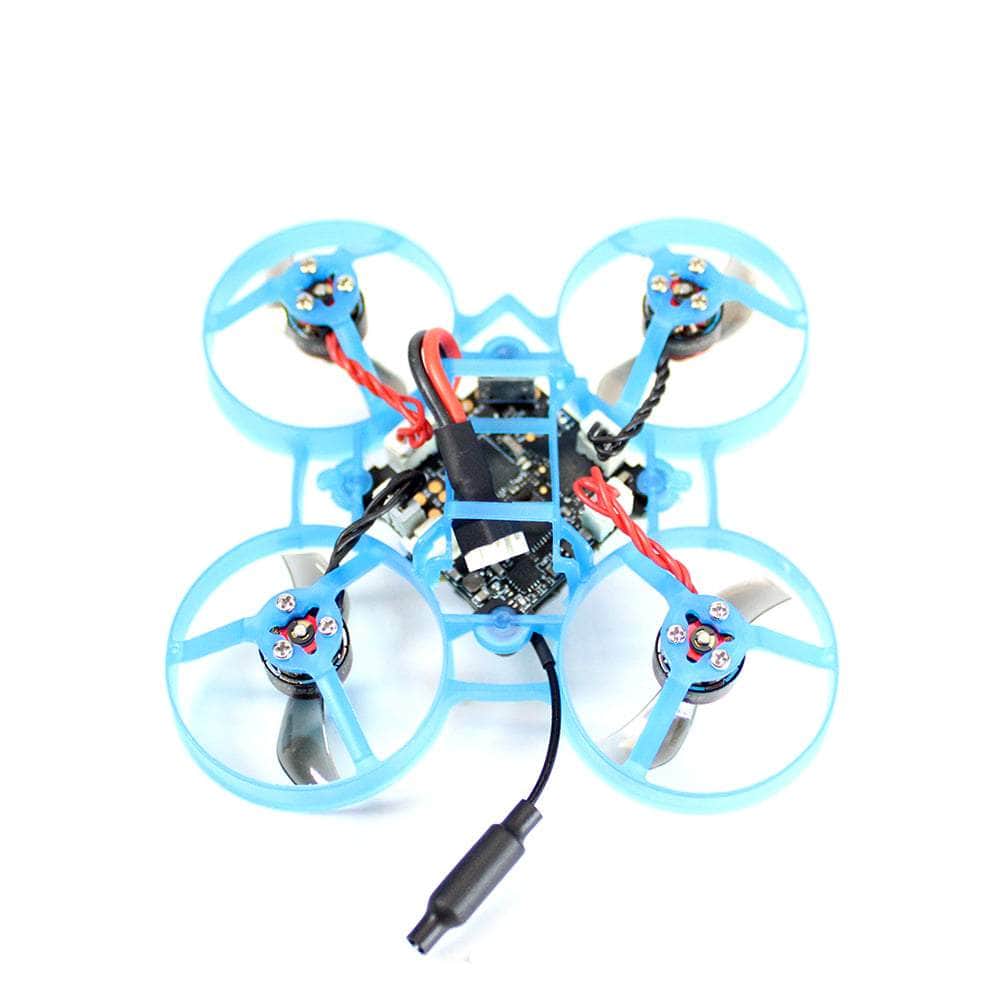

Equipped with an ExpressLRS built-in SPI receiver, you'll never have to worry about range when whooping! This version of the Mobula6 also has another new feature: 0802 19000Kv motors! These motors are some of the lightest brushless whoop motors. Lighter whoops are easier to fly and super fast. The Mobula6 now comes equipt with the Caddx Ant Nano 4:3 camera.
ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable.
This version comes pre-installed with ELRS 2.4GHz and ELRS V2.0!
Check out our other pre-built quads, as well as the rest of our HappyModel selection!
Specifications
- Weight: 18.7g
- Recommended Battery: 1S 300mAh
- Propellor Size: 65mm
- Antenna: Linear Dipole
HappyModel Crazy F4 FC
-
Input Voltage: 1S LiPo
-
MCU: STM32F411CEU6
-
Gyro: MPU-6000
-
OSD: Yes
-
UARTs: 2 Sets
-
ESC Connections: Yes
-
FC Firmware: CRAZYBEEF4DX
-
BEC: 5V 1A
-
Current Sensor: Yes
-
Buzzer: Yes
-
Barometer: No
- Black Box: No
-
Max. Continuous Current: 5A
-
Max Burst Current: 6A (10sec)
-
ESC Firmware: BLheli_S
- Stack Size: 25x25mm
-
Dimensions: 29x29mm
-
Weight: 5g
Motors
- Stator Size: 0802
- Kv: 19000
Caddx Ant Nano
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- Dimensions: 14 x 14mm(with bracket to 19 x 19mm)
- Work Humidity: 20%~80Caddx Ant 4:3
- Min. Illumination: 0.001Lux@F1.2
- Image Sensor: 1/3" CMOS Sensor
- Horizontal Resolution: 1200 TVL
- Wide Power Input: DC 3.7-18V
- Work Temperature: -20-60°C
- S/N Ratio: >52dB (AGC OFF)
- Synchronization: Internal
- TV System: NTSC or PAL
- Auto Gain Control: YES
- Video Output: CVBS
- WDR: Global WDR
- Model: Caddx Ant
- Weight: 2g (N.W.)
- MENU: Support
- DNR: 3D DNR
- Lens: 1.8mm
- IMAGE: 4:3
- BLC: YES
Includes
- 1x HappyModel BNF Mobula6 ELRS 65mm Brushless Whoop - ELRS 2.4GHz
- 4x 1S 300mAH Batteries
