T1000-E Meshtastic Radio
- In stock, ready to ship

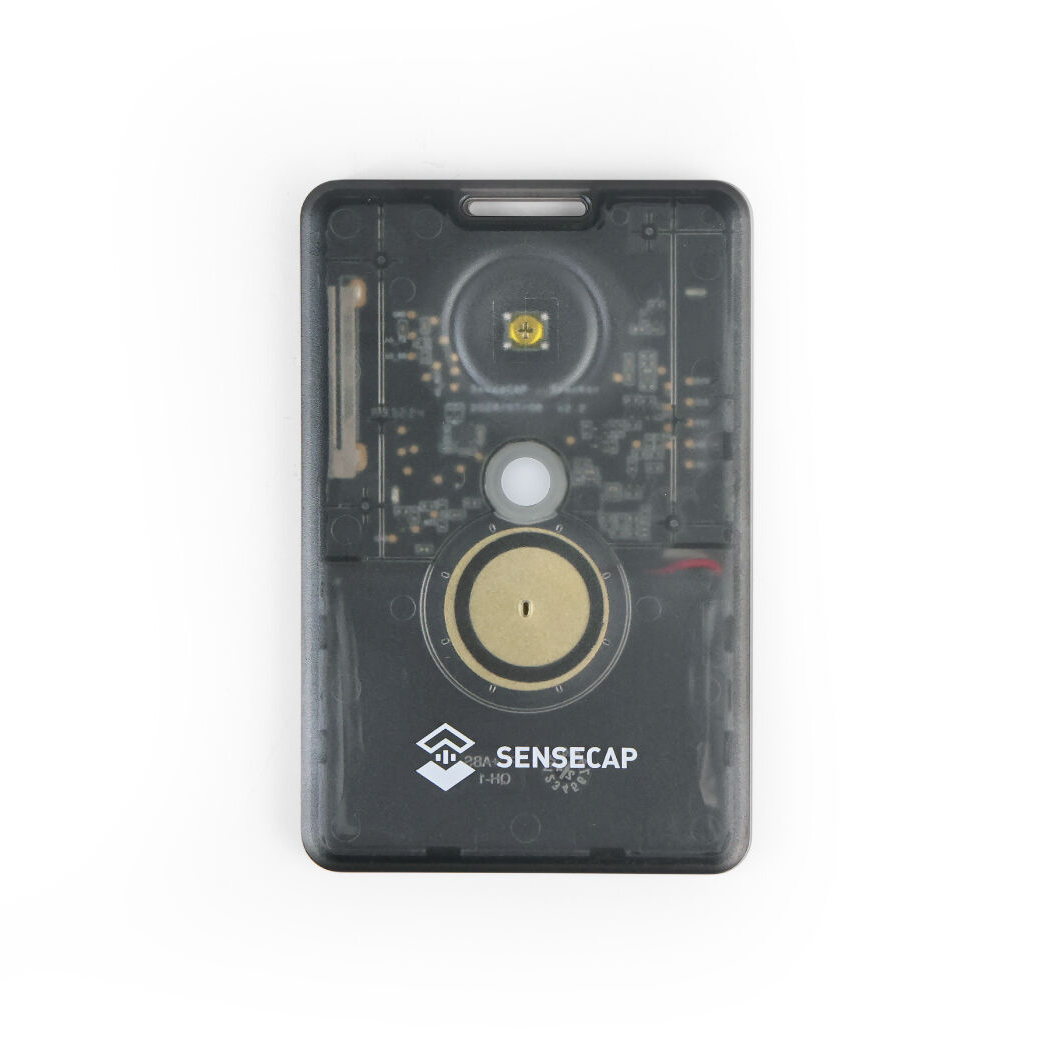

The SenseCAP™ T1000-E Meshtastic™ Radio from Seeed Studio is an IP-65 rated, all-in-one, fully sealed Meshtastic™ radio. Don’t let its compact form factor fool you! This compact, credit-card shaped radio has great range with its built-in internal antenna and includes most of the advanced features you’d want, built right in.

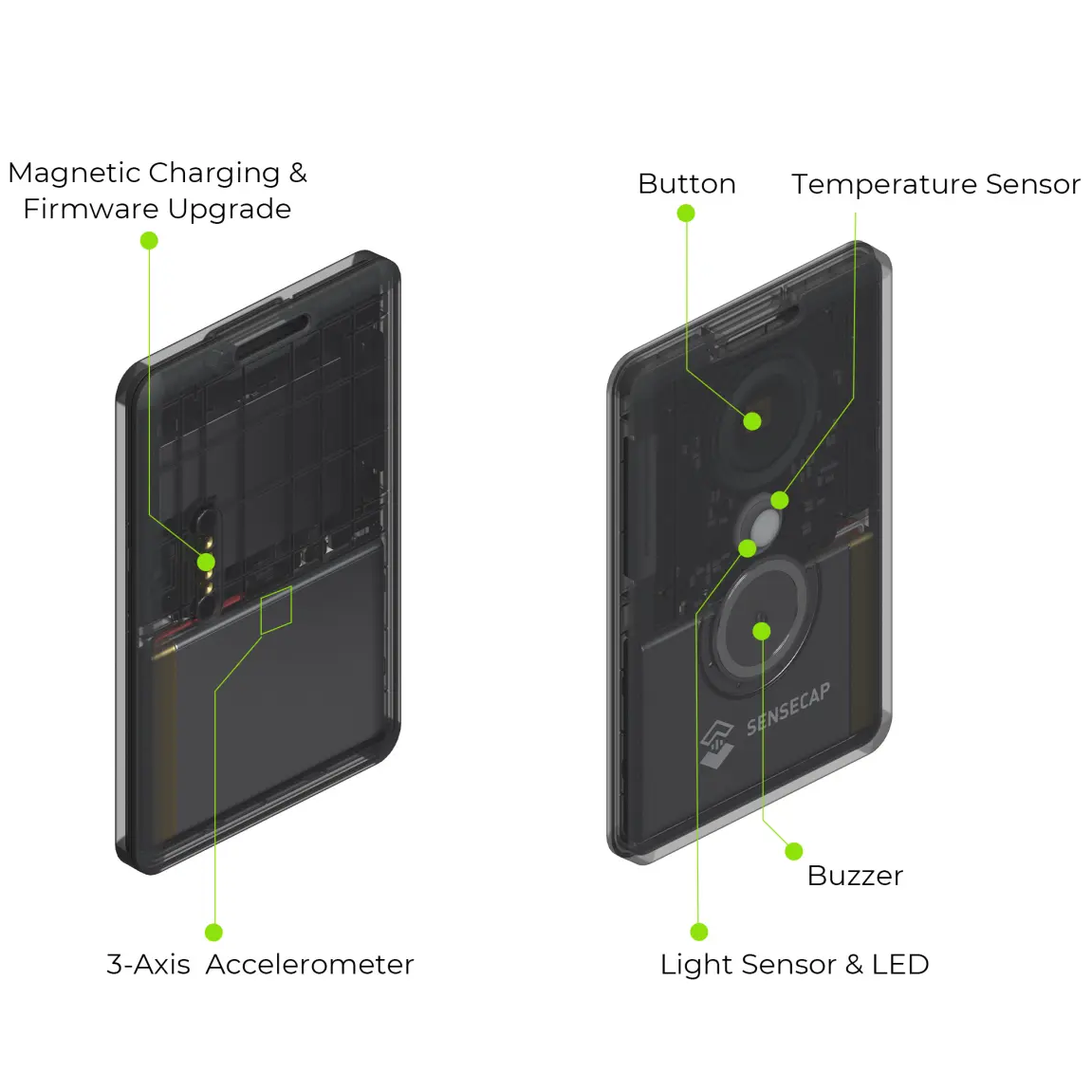

GPS, temperature sensor, light sensor, notification buzzer, LED indicator, waterproof housing, magnetic charging/firmware updates, and a 700mAh battery make this a perfect first Meshtastic™ device—or a convenient and inconspicuous everyday carry radio.

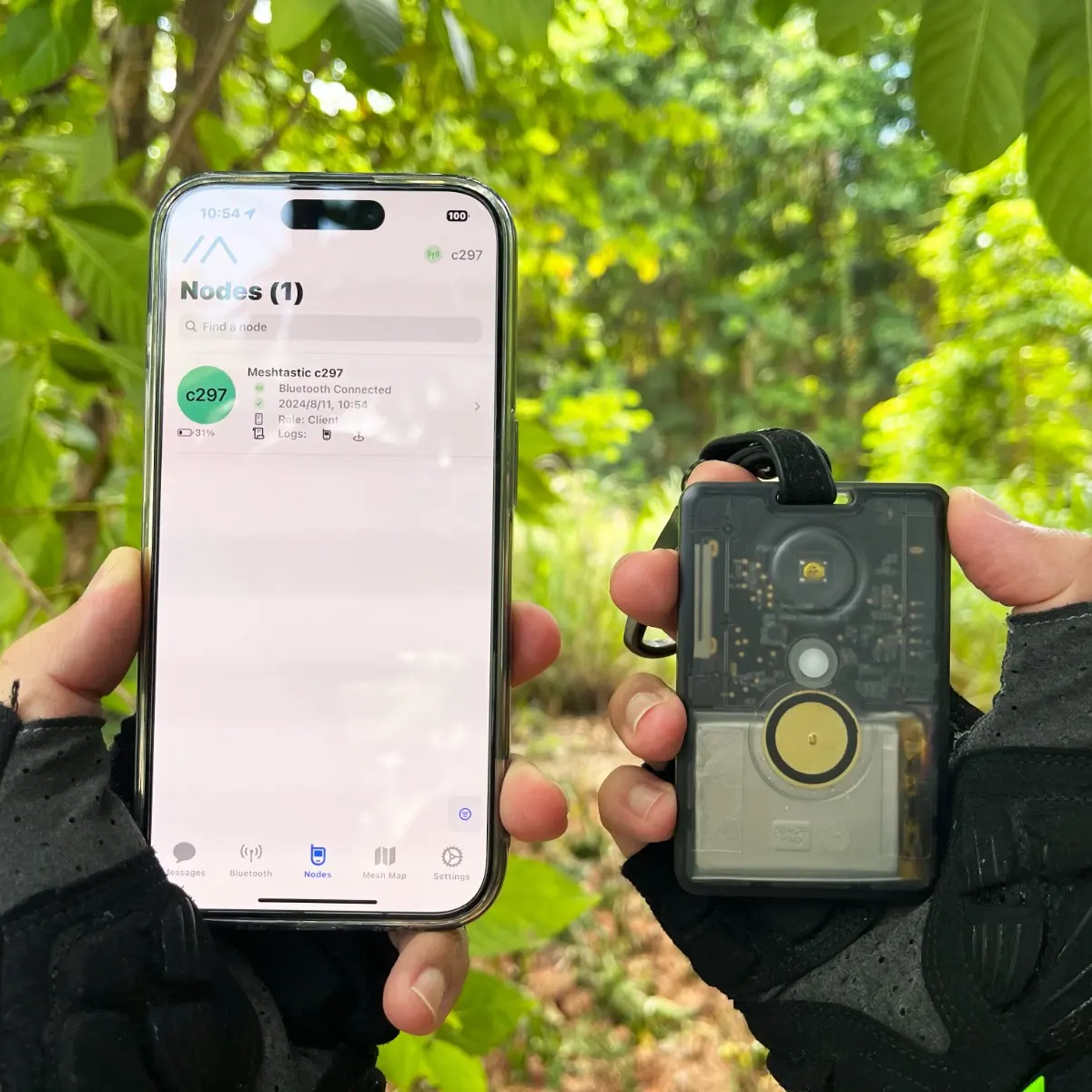

Connect the T1000-E to your phone via Bluetooth with the free, open source Meshtastic™ app to send texts and location data to your friends, or chat on the public channel. Or use it as a stand-alone asset tracker to report its location to another Meshtastic™ radio.
All radios purchased from Atlavox
- Flashed with the latest stable Meshtastic™ firmware immediately prior to shipping (not old firmware flashed months ago sitting on a shelf)
- Custom private encrypted primary channel with precise GPS positioning
- Public channel configured on a secondary channel
- When you buy multiple radios from Atlavox, all radios in your order will share your custom private primary channel key.
This is a complimentary service provided at no additional cost. You can always customize and change settings yourself later if needed.
Download PDF DATASHEET (685kb)
Specifications
| Feature | Specification |
|---|---|
| Network protocol | LoRa (Supports 863-928 MHz range), Bluetooth v5.1 |
| Temperature | Range: -20 to 60℃; Accuracy: ±1℃ (min ±0.5℃, max ±1℃); Resolution: 0.1℃ |
| Light | 0 to 100% (0% is dark, 100% is brightest) |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement (Not currently used in the Meshtastic firmware) |
| LED and Buzzer | 1* LED and 1* buzzer to indicate status |
| Button | 1* Button to operate |
| Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Communication Distance | 2 to 5km (depending on antenna, installation, and environments) |
| IP Rating | IP65 |

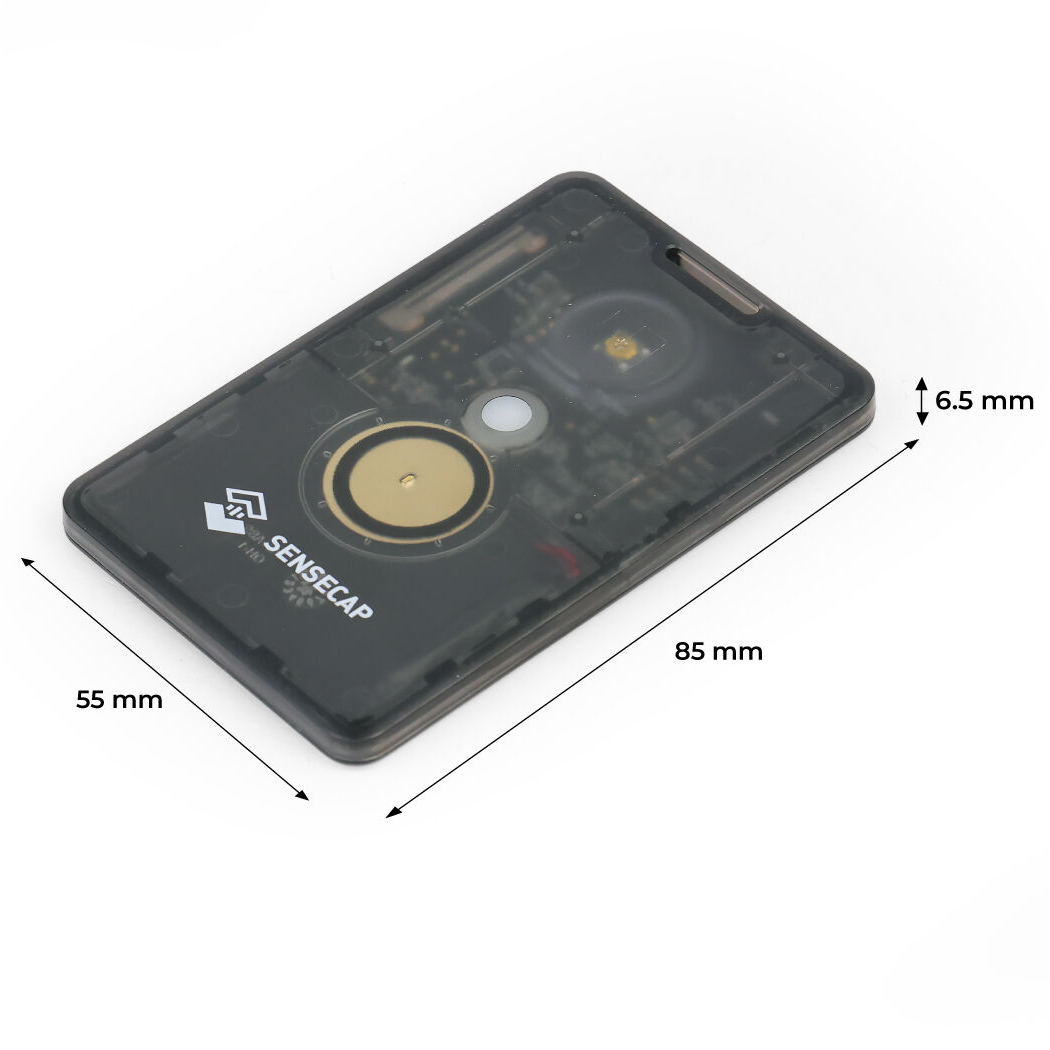

| Dimensions | 85 * 55 * 6.5 mm |
| Device Weight | 32g |
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | 5% - 95% (No condensation) |
| Certification | CE / FCC |
| Battery Capacity | Rechargeable lithium battery, 700mAh |
| Battery Life Monitoring | Periodic uplink battery level |

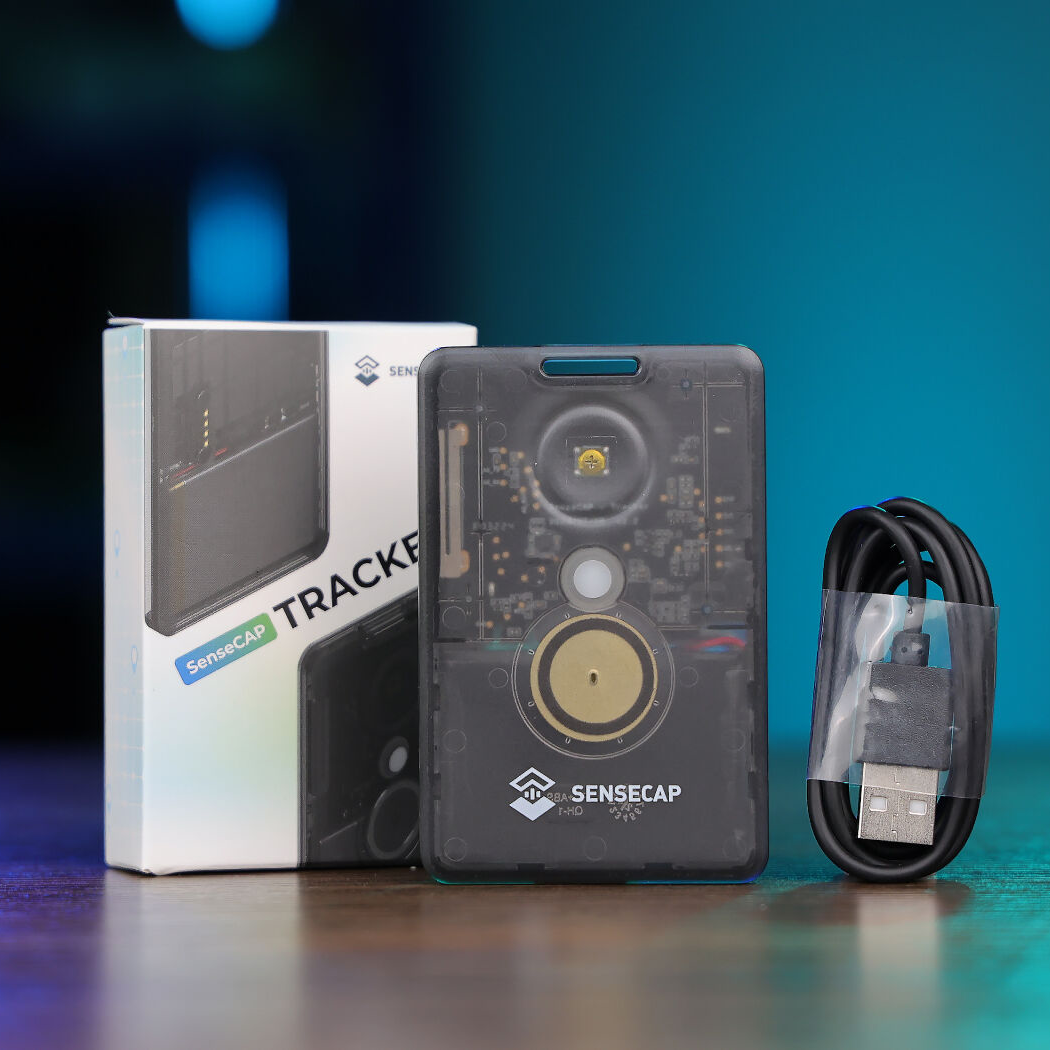

| Charge Cable | USB magnetic charging cable, 1 meter (Adapter not included) |
| Power Input Voltage | 4.7 to 5.5V DC |
| Charging Temperature Limit | 0 to +45℃ |
